460 S&W Spire Point | NOE Bullet Moulds

This topic is empty.

Creator

Topic
2015-05-10 at 07:31 #488034
blainlagergren
Up
0
Down
::
Would anyone else be interested in seeing a gas check spire point mold in .453 similar to the 502-375-SP design, scaled down and perhaps purposely lightened further to eek out some more velocity.
Creator

Topic

Viewing 15 replies - 1 through 15 (of 23 total)

1 2 →

Author

Replies
2015-05-27 at 17:29 #498010
Full.Lead.Taco
Keymaster
Up
0
Down
::
I would. I am a sucker for those spire points–they just look so dang cool. What bullet weight you thinking?
2015-05-27 at 17:43 #498011
teemu
Participant
Up
0
Down
::
Me too, but if possible atleast .454 diameter… Need to get room for sizing. Also depends what weight it should be?
2015-06-01 at 04:02 #498012
blainlagergren
Up
0
Down
::
Could a .454 in 460 s&w with spire point function ballistically or even be possible to cast at 250gr or even lighter? I’m not a bullet designer but I realize the primary benefit of the 460 is velocity and that going heavy would limit that major reason for having a 460.

Maybe I’m off base but I saw the 500 spire point mold and thought, why not the 460, but make it light so it makes sense in the 460.
2015-06-03 at 01:14 #498013
frankelliott
Participant
Up
0
Down
::
To start with, it’s extremely hard to keep the weight down on a 45 cal bullet and still have any bearing area to guild it down the bore. The best I could do with this concept was 270 gr.

If you can get a mold going, it would be best to offer a .452 and a .454 in the same run.

Is this what you guys are thinking?

Frank
2015-06-03 at 04:00 #498014
teemu
Participant
Up
0
Down
::
Looking good… Im IN if I can get it .454…
2015-06-03 at 05:33 #498015
Full.Lead.Taco
Keymaster
Up
0
Down
::
Hmmmmm, this looks like it would be fun in a muzzle loader sabot as well as my 460 mag. I would be fine with the above bullet in .454. That would give me some room if I cast with soft lead. Count me in for one.
2015-06-03 at 06:06 #498016
frankelliott
Participant
Up
0
Down
::
NOTE:
I kept shorting the mold and forgot to rename it after the final time. It should be called the .452 X .80

Frank
2015-06-04 at 14:33 #498017
SwedeNelson
Keymaster
Up
0
Down
::
We have the tooling for this one in house.
Could take it out to .460

Bullet maker, maker
Al Nelson
2015-06-09 at 12:21 #498018
Full.Lead.Taco
Keymaster
Up
0
Down
::
Which bullet style do you guys think would fly better? The noe spirepoint or the frank designed spirepoint?
2015-06-09 at 15:29 #498019
frankelliott
Participant
Up
0
Down
::
Which bullet style do you guys think would fly better? The noe spirepoint or the frank designed spirepoint?

It depends on what your looking for in bullet proformance.

The NOE SP, will penetrate hard objects better at closer ranges. The bullet that I designed will loose less velocity and have more energy at longer ranges.

Frank
2015-06-09 at 22:38 #498020
Full.Lead.Taco
Keymaster
Up
0
Down
::
hmmmmmm, well now I want one of each…
2015-06-22 at 16:02 #498021
blainlagergren
Up
0
Down
::

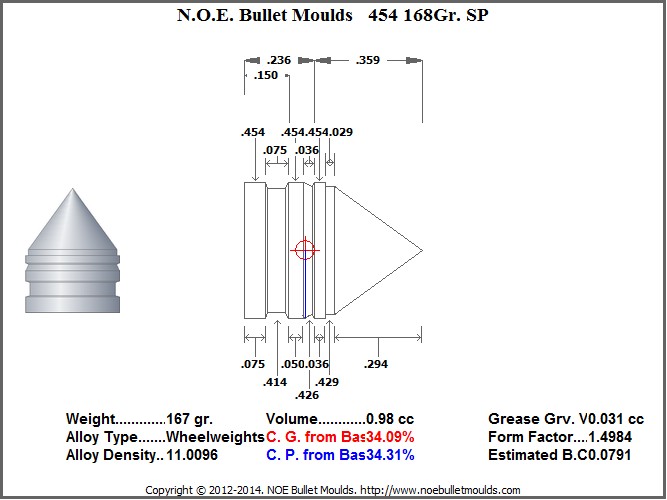

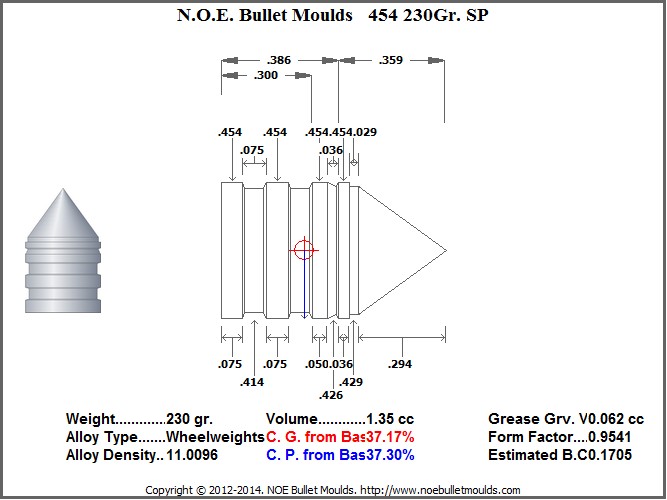

Thank you for the contributions. I’m liking the look of that NOE 260 gr. and the 230 gr. and the 168 gr., ha. Definitely would purchase those.

I think at this point I’m leaning towards either the 230 or the 168 with a powder coat for maximum laser beam silliness.
2015-10-01 at 03:28 #498022
davenisbet1
Up
0
Down
::
If this is still active I’d be interested in the NOE design with the sharp point. I’d be interested in the 230 or 260gr preferably have both.
2015-10-19 at 15:33 #498023
Full.Lead.Taco
Keymaster
Up
0
Down
::
I think I would be interested in both the 230 and 260 also.
2015-10-28 at 16:54 #498024
jasonfancher
Participant
Up
0
Down
::
i would be in for a 4 cavity. anybody else?
