Adjustable 50 Cal Bullet Mould Design

Up

-5

Down

::

I want to do another one of the hollow base (with 4 sets of pins for 4 different bullet weights) for the .502 sized firearms.  Anybody have any ideas for preferences on nose design/shape and also the 4 different bullet weight options?

Truncated Cone for something different? 300gr hb? 350gr, 400gr, 500gr?

*New Drawings added to this post:

• This topic was modified 2 years, 10 months ago by Full.Lead.Taco.
• This topic was modified 2 years, 10 months ago by Full.Lead.Taco.
• This topic was modified 2 years, 10 months ago by Full.Lead.Taco.

Topic

[Gus ThemarasParticipant]

Up

0

Down

::

I would opt for the nose profile of the HTC502-325-FN-BZ2 2 Cavity GC since it feeds well in my 50Beo. Would love to see a 500gr and better yet, with a gas check design if possible. Slick sided. An added roll crimp groove for those looking to use this bullet in their revolvers.

[Full.Lead.TacoKeymaster]

Up

1

Down

::

Can’t do a gas check with a hollow base mold model.  I agree that a crimp groove would be desired for the 500 S&W shooters.  Wonder if a truncated cone nose design would be cool–haven’t seen much of those. Think a TC would feed in the beo?

Gus Themaras wrote:

I would opt for the nose profile of the HTC502-325-FN-BZ2 2 Cavity GC since it feeds well in my 50Beo. Would love to see a 500gr and better yet, with a gas check design if possible. Slick sided. An added roll crimp groove for those looking to use this bullet in their revolvers.

[Gus ThemarasParticipant]

Up

-1

Down

::

I haven’t seen any TC designs either and I would say its close enough to the RNFP that it should feed just fine. I loaded the Lee 440GC which is close to a TC and I have never had any issues. 500gr is what primarily piques my interest.

[Full.Lead.TacoKeymaster]

Up

-1

Down

::

ok, I’ve talked to Al and we are going to get some initial drawings posted and then see what people think

[Dont Lose Sight DLS001Participant]

Up

-1

Down

::

SAME for 0.510″ with FOUR PINS like my FIVE GALLON BUCKET…NOT tumble HITS 190yard GONGS…



backwards and forwards at 100yard also…. accurate…  FOUR PINS FOR ALL……..



And AL< we NEED a 0.297 bushing to PUSH NEW RECORDS on FPE again…



😉

Dont Lose Sight DLS001

[Full.Lead.TacoKeymaster]

Up

1

Down

::

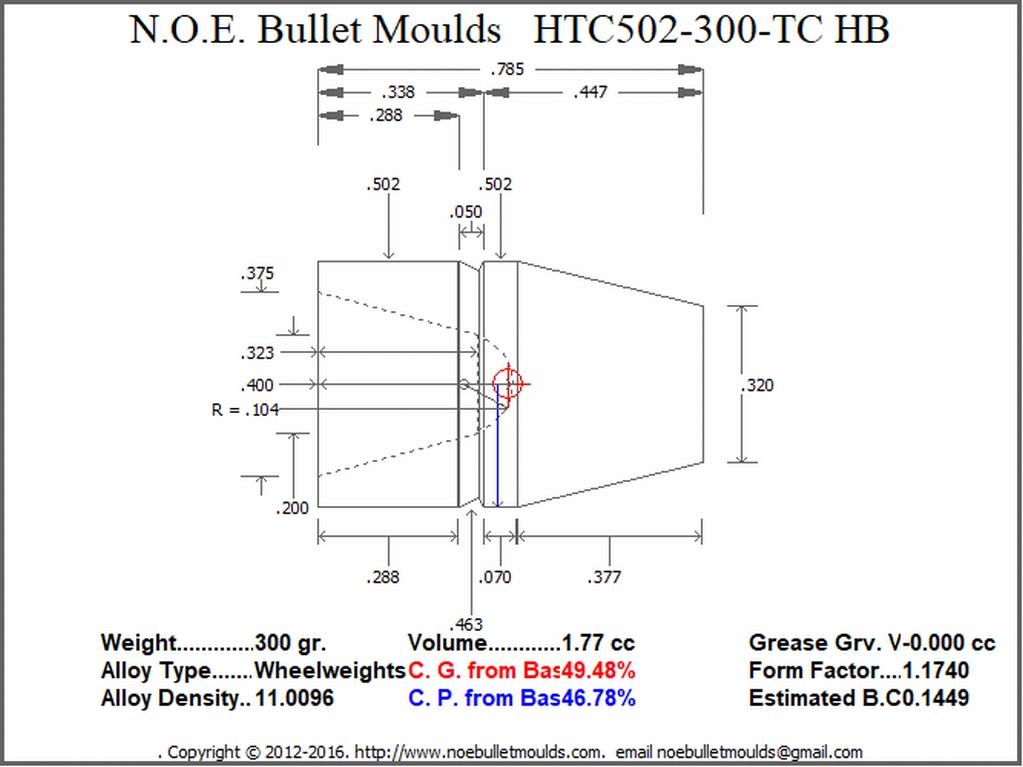

Ok, here is the technical drawing of the lightest weight 502 with a hollow base and truncated cone nose:
Feedback?

[Gus ThemarasParticipant]

Up

-1

Down

::

Looking good so far. Looks clean! We still going for the 500gr on the full size pins? If so, im in.

[David LambParticipant]

Up

-1

Down

::

I’m in when you’re ready, I’m loving the precious adjustable moulds you designed

[Gus ThemarasParticipant]

Up

-1

Down

::

Will this mold be available before the Spring sale ends? How can we purchase this mold?

[Full.Lead.TacoKeymaster]

Up

1

Down

::

The other weights are planned to be 350gr with the flat base pin, and then 400gr, and 500gr.

[Full.Lead.TacoKeymaster]

Up

0

Down

::

bullet drawings added to original post, please check them out and provide feedback!

[Gus ThemarasParticipant]

Up

-1

Down

::

Looks good

• This reply was modified 2 years, 10 months ago by Gus Themaras.

[David LambParticipant]

Up

-1

Down

::

I’m in!

[Full.Lead.TacoKeymaster]

Up

-1

Down

::

I updated the drawing to be the 350gr bullet instead of 364gr.  As soon as I get the pricing I can create the group buy if nobody has any desired changes.

[Gus ThemarasParticipant]

Up

-1

Down

::

Sounds good to me. This is my first time participating in a group buy. How do I do this and is there anything else I need to know?
