NOE Version of the RCBS Like .25 cal. Boolit??

This topic is empty.

Creator

Topic
2014-09-30 at 17:31 #487661
jimmckee
Up
0
Down
::
Any interest in NOE offering an .25 cal. RCBS like 80-85 g boolit with smaller lube grooves with the WFN?
This should be a good replacement for those hunting small edible game at slower speeds or faster speed for others.
Thanks!
Jim
Creator

Topic

Viewing 15 replies - 1 through 15 (of 28 total)

1 2 →

Author

Replies
2014-10-02 at 14:46 #493460
teemu
Participant
Up
0
Down
::
Do You mean this mold?
http://www.buffaloarms.com/RCBS_82301_Bullet_Mould_it-162594.aspx?CAT=4123

If that is what You intend I´m interested .260 diameter…
2014-10-02 at 21:25 #493461
jimmckee
Up
0
Down
::
Yes!
Jim
2014-10-03 at 05:27 #493462
teemu
Participant
Up
0
Down
::
Ok now we need 8 more….
2014-10-03 at 15:37 #493463
SwedeNelson
Keymaster
Up
0
Down
::

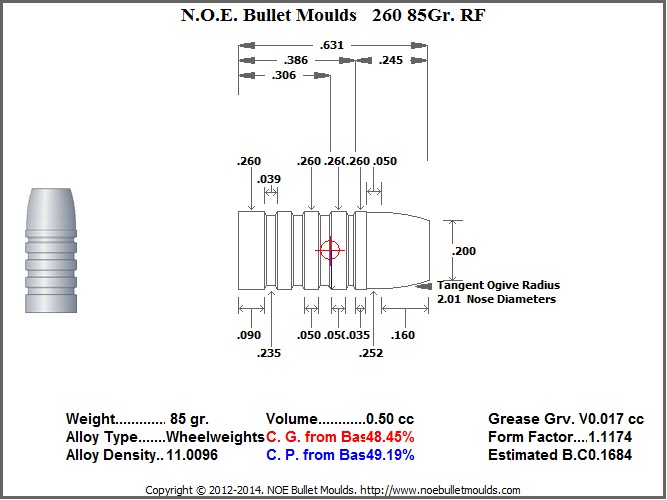

Something to look at

Can make any changes that need to be
Bullet maker, maker
Al Nelson
2014-10-03 at 16:27 #493464
brianadams
Participant
Up
0
Down
::
I’d take one, especially if I could get it in brass.
2014-10-03 at 19:13 #493465
teemu
Participant
Up
0
Down
::
Look´s fine i´m in
2014-10-03 at 21:20 #493466
tomelgan
Participant
Up
0
Down
::
Al – How much of a reduction did we get in the lube groove width and depth? The ones in your drawing look to be just about the same as those on the RCBS bullet. I believe the depth on the original RCBS is considered by many 25-20 shooters to be a design flaw in that it holds too much lube, contributing to fliers. There is some very good discussion on this over on the Marlin Owners Website on the 25-20 Reloaders thread by 35Rem (who seems to be our local 25-20 expert on the Cast Boolits site). Eric – At Hollow Point Mold Service performs a modification on the RCBS mold – Reducing the lube groove to half of it’s original depth. Like the wide meplate.
2014-10-04 at 15:59 #493467
SwedeNelson
Keymaster
Up
0
Down
::

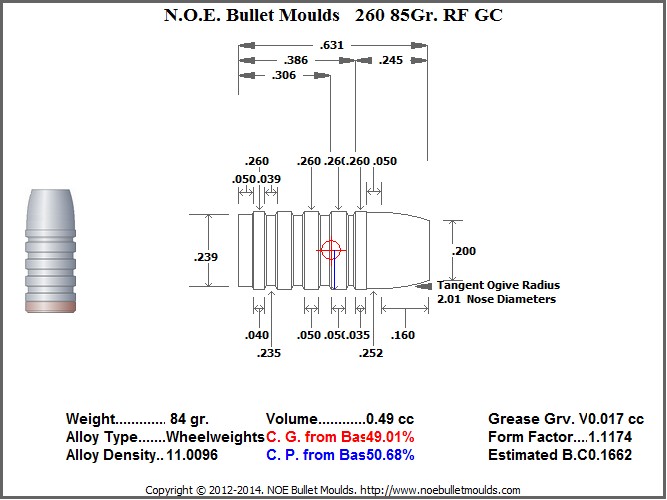

I think it could be improved with 3 smaller grooves
and keep the weight the same

Could lube as many grooves as it needs (1, 2 or 3)

Bullet maker, maker
Al Nelson
2014-10-04 at 16:19 #493468
teemu
Participant
Up
0
Down
::
Still fine for me i´m in
2014-10-04 at 17:26 #493469
raymondbedford
Up
0
Down
::
Swede
The new forum looks Great!!! I wasn’t aware it was around, but I am now…
Congrats and Good luck with everything…

What size mold are we thinking here (# of cavities)? And will it be iron or alum?
I’d be interested in one if its maybe 4 cavity or so. Do you know a price yet?

Thanks
BigBore44
2014-10-05 at 03:19 #493470
stevevegos
Participant
Up
0
Down
::
+1 Probably PB.
2014-10-06 at 00:20 #493471
johnalbert
Participant
Up
0
Down
::
For reasons having to do with the desirability of thicker bands, and having to do with a distinct identity that is less similar to what has already been produced, I’d like to stick to two narrower (and shallower) lube grooves. Does not matter if weight goes up a little as length will be the same. I am after less lube contact area and a stronger bullet.

A thicker base band going toward the 260283 is appealing. This has meplat advantages over that bullet and would be shorter so no duplication there. Should stabilize at fairly slow speeds even in 1-14, and I’m looking for low to high velocity capability. Would also be interested if I could get mixed GC and PB cavities in the same mould block.
2014-10-06 at 14:57 #493472
SwedeNelson
Keymaster
Up
0
Down
::

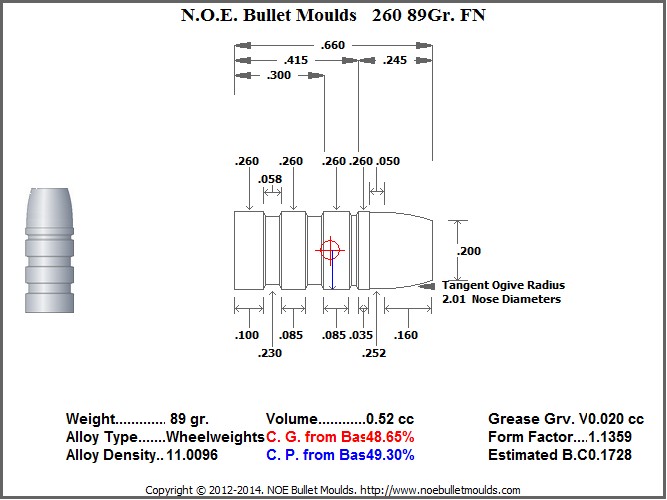

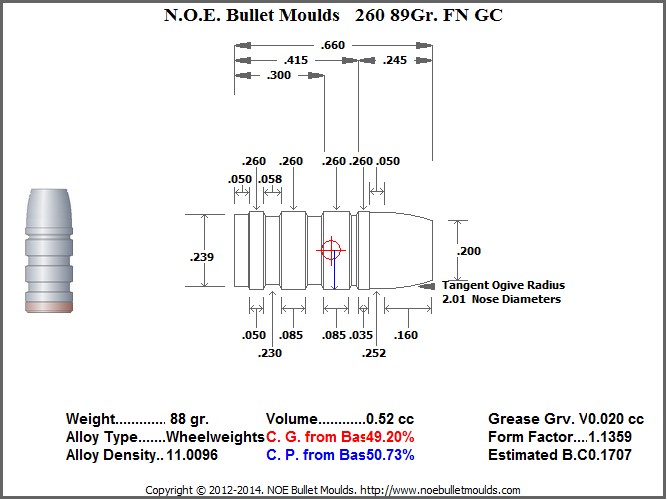

How’s about this one?

Can do 2 cavity 1GC 1PB or 4 cavity 2GC 2PB too.
Bullet maker, maker
Al Nelson
2014-10-06 at 18:29 #493473
teemu
Participant
Up
0
Down
::
Still in….
2014-10-06 at 20:14 #493474
peterogers
Participant
Up
0
Down
::
How’s about this one?

Can do 2 cavity 1GC 1PB or 4 cavity 2GC 2PB too.
Bullet maker, maker
Al Nelson

I’d be interested in this… (shallower lube groove design)….
4 cavity all gascheck.

The original RCBS did have way too much lube capacity. Probably was designed for black powder.
